    1x2 Channel Wavelength Division Multiplexer FWDM Splitter SC UPC

    Ask Lasest Price
    Brand Name : Unifiber or OEM
    Model Number : 1x2 High Isolation FWDM Splitter
    Certification : ROHS
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 500pcs/day
    Delivery Time : 3~5 days
    • Product Details
    • Company Profile

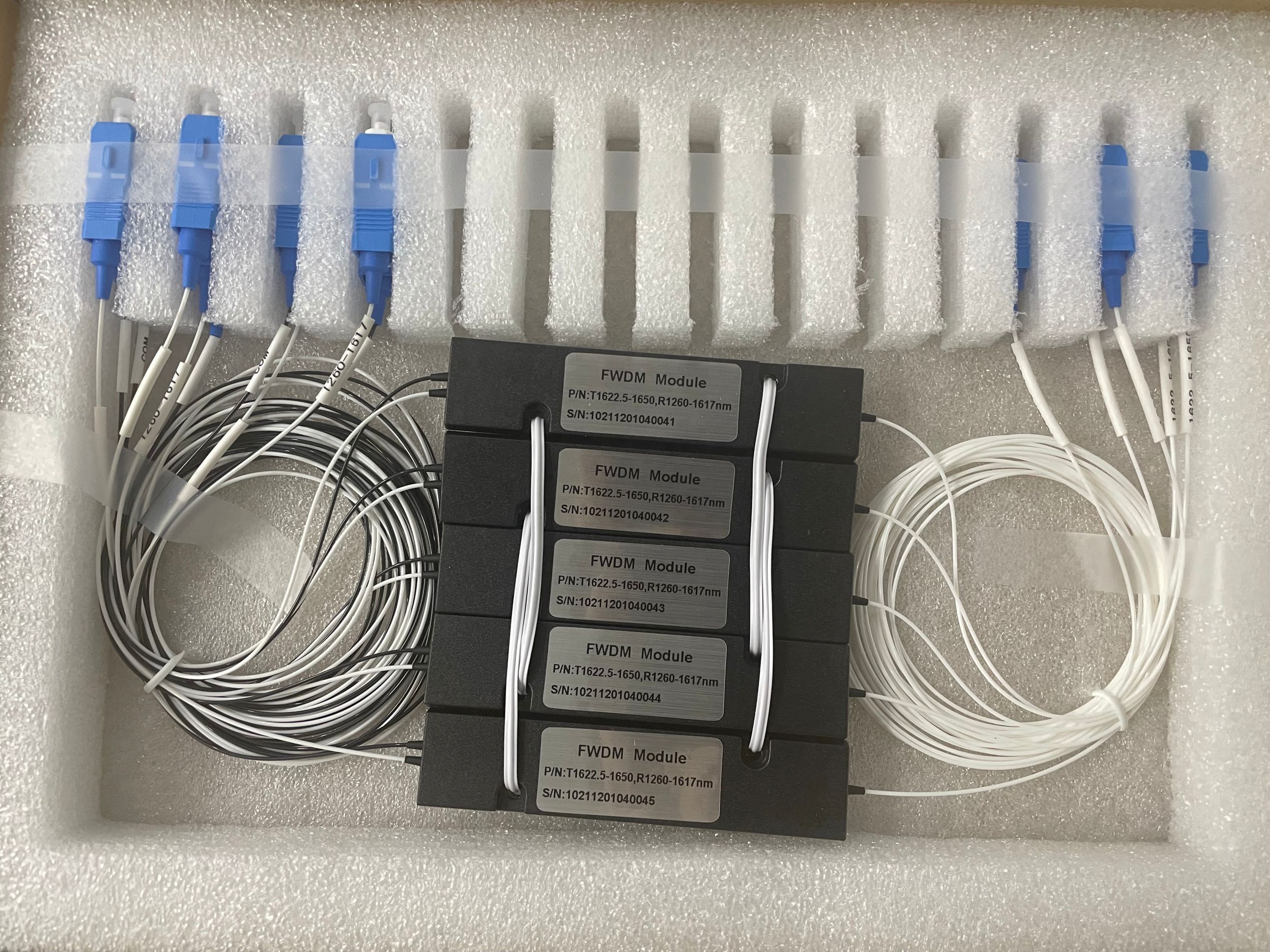

    1x2 Channel Wavelength Division Multiplexer FWDM Splitter SC UPC

    Features
    l Low insertion loss
    l Flat and wide bandwidth
    l High channel isolation
    l High stability and reliability
    l Epoxy-free optical path


    Applications
    1. Line monitoring
    2. WDM system
    3. Telecommunication network system
    4. Triple-Play FTTH


    Specification

    Parameters
    Specification
    Test Data
    Pass Channel Wavelength Range (nm)
    1622.5-1650
    1622.5-1650
    Reflect Channel Wavelength Range (nm)
    1260-1617
    1260-1617
    Serial Number
    IL(dB)
    Isolation(dB)
    PDL(dB)
    DIR
    R/L
    Pass
    Reflect
    Pass
    Reflect
    Pass
    Reflect
    (dB)
    (dB)
    ≤0.8
    ≤0.6
    ≥30
    ≥15
    ≤0.1
    ≤0.1
    ≥50
    ≥45
    Dimension(mn)
    90x20x10
    Connector Type
    SC/UPC
    Fiber Length (m)
    1
    Fiber Type
    SMF-28e with 900um Loose Tube
    Operating Temperature (℃)
    -5 〜+75
    Storage Temperature (℃)
    -40~+85

    1x2 Channel Wavelength Division Multiplexer FWDM Splitter SC UPC
