    LC SC Fiber Terminal Box 8 Ports Enclosure Cold Rolled Steel FTTH

    Ask Lasest Price
    Brand Name : Unifiber or OEM
    Model Number : 8 Ports Wall Mount Enclosure Terminal Box LC/SC
    Certification : ROHS
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 500pcs/day
    Delivery Time : 3~5 days
    • Product Details
    • Company Profile

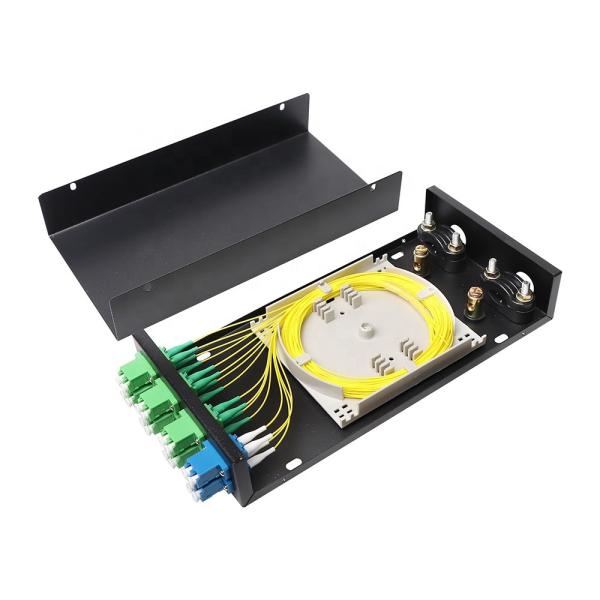

    LC SC Fiber Terminal Box 8 Ports Enclosure Cold Rolled Steel FTTH

    The Fiber opitcal Terminal Box is a kind of fiber optic managenment products used to distribute and protect the optical fiber links in FTTH Network. It is available for the distribution and terminal connection of various kinds of optical fiber system.These units are available in sizes that fit the most common distribution requirements.


    Application
    1. The termination box applicable to indoor,outdoor fiber cable straight through or branch continuity.

    2. Used for wire distribution and end connection of the optical fiber system.

    3. Fit for wall mounted


    Product Description
    1. Hight quality steel with cover by electrostatic painted

    2. Standard 19" racks use or customized size

    3. Height depends on capacity

    4. Optional sdapter types:FC,SC,LC


    Basic parameters:
    Product name
    FTTH fiber optic termianl box ( distribution box)
    Brand name
    Unifiber or OEM
    Adapter (coupler) type
    LC-LC Duplex
    Adapter (coupler) number
    8
    Fiber type of pigtail(patch cord)
    Single mode
    Connector type of pigtail(patch cord)
    LC/UPC, LC/APC
    Shell material
    CRS sheet( cold-roll steel sheet) with coating
    Shell thickness
    0.74mm
    Color
    Black
    Outer size
    155x95x30mm
    Net weight
    About 0.4kg
    Opening
    Screw fixation
    Installation
    Wall / desktop / floor mounting
    Optional adapter
    SC-SC simplex adapter (coupler)
    Optional fiber
    Multimode or Singlemode
