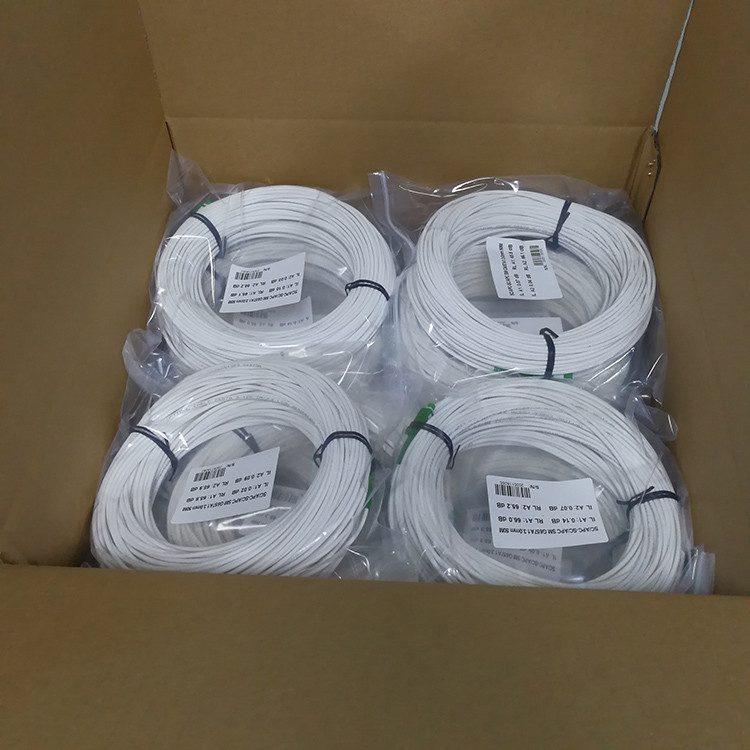

4.2mm G657A2 FTTH Drop Cable Pigtail SC/APC with 2.0mm inner white LSZH sheath, outer jacket is LSZH/PE Material,it can be used indoor or outdoor ,With outer diameter of 4.0mm, it can be stripped more easily if customer need use inside 2.0mm cable to connector with patch panels,terminal box and make splicing installation .The fiber we used G657A fiber.For this type Patch cord/ pigtail length always come as 20M 30M 40M 60M 80M100M 120M or others.

As a specialized patch cord producer and provider, Unifiber offers various types of patch cable solutions. We are committed to offering high standard quality products at competitive prices and conduct rigorous quality controls on each manufacturing step. Our fiber optic cable meets RoHS and UL compliant, and all fiber patch cables connectors are 100% optically tested for insertion loss to ensure nice quality.

Features :
1; The connectors are comply with IEC, Telcordia-GR-326-Core standards;
2; Different size & color boot option;
3; Low insertion loss; High return loss;
4; 100% interferometer measurement;
5: Typical IL≤0.20dB;
6. Max IL≤0.25dB;
7. RL SM≥50dB, APC≥60dB, MM≥20dB.
8. Durability(500mating time): IL≤0.25dB.
9. Operating / storage temperature:- 20~+70°C

Application :
1; Telecommunication networks;
2; Local area networks; CATV;
3; Active device termination;
4; Data center system networks;

Unifiber, a Hi-Tech company specialized in developing and manufacturing optical fiber products. Based on strong hardware development, we are offering the most cost-effective cabling solutions on optical networking, data center, FTTx and OEM solution.

Our featured products includes FTTA Waterproof Connectors, indoor/outdoor armored cable assembly, Pre-terminated Multifiber Cables, FTTH flat drop patch cable, LC Uniboot, 6~12 fiber pigtails and MTP/MPO series. We can also provide adapter, attenuator, fused coupler, PLC Splitter, WDM and various of patch panel, terminal box, ODF and tool series products..

Providing the highest quality products and services is always the most important principle to Unifiber, All our products are subjected to strict test according to BELLCORE standard and fully RoHS compliant. Through the efforts of our team, Unifiber has obtained a widespread acknowledgement, Our products continue to enjoy growing acceptance both in China and abroad.
