    1550nm Polarization Beam Combiner PBC PBS PM SMF Fiber Aligned To Slow Axis

    Ask Lasest Price
    Brand Name : Unifiber or OEM
    Model Number : 1310nm/1550nm Polarization Beam Combiner Splitter
    Certification : ROHS
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 1000pcs/day
    Delivery Time : 3~5 days
    • Product Details
    • Company Profile

    1550nm Polarization Beam Combiner PBC PBS PM SMF Fiber Aligned To Slow Axis

    The Polarization Beam Combiner/Splitter is a micro-optic device that can combine two polarized light signals into one output fiber, or split one light into two polarized outputs with their polarization states orthogonal to each other. The typical configuration of PBC uses the two PM fiber for input and the SM fiber for output.


    FeaturesApplications
    Low insertion LossHigh power EDFA
    High extinction ratioRaman amplifier
    Compact in-line packageLaboratory
    High stability and reliability
    Epoxy free on optical path

    Performance Specifications

    ParameterP GradeA Grade
    Center Wavelength(nm)1310,1480 or 1550
    Operating Wavelength Range(nm)±40
    Typical Insertion Loss(dB)0.40.5
    Maximum Insertion Loss(dB)≤0.6≤0.7
    Min.Extinction Ratio(for splitter only)(dB)2320
    Min.Return Loss(dB)50
    Direction of Incident PolarizationSlow Axis
    Operation Temperature(℃)-10~+75
    Storage Temperature(℃)-40~+85
    Fiber TypePM on port1 and 2,SM or PM on port3
    Power Handing(N)5
    Dimension(mm)Φ5.5×L35
    Max.Optical Power(mW)500

    1.The PM fiber and the connector key are aligned to the slow axis.

    2.The devices with connectors,insertion loss will be 0.3dB higher,RL will be 5dB lower,and ER will be 2dB lower.

    3.The above specifications are for device without connector.

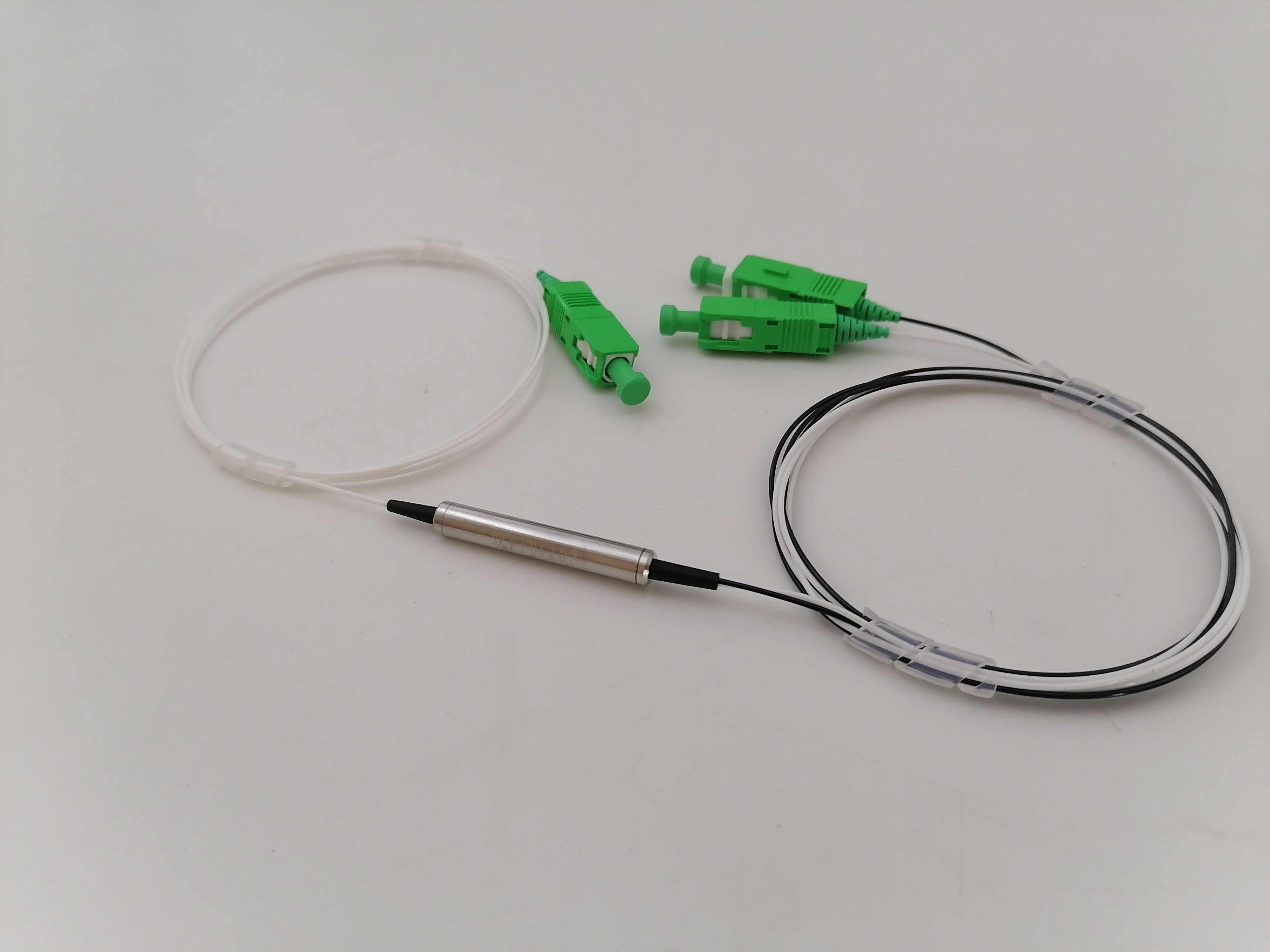

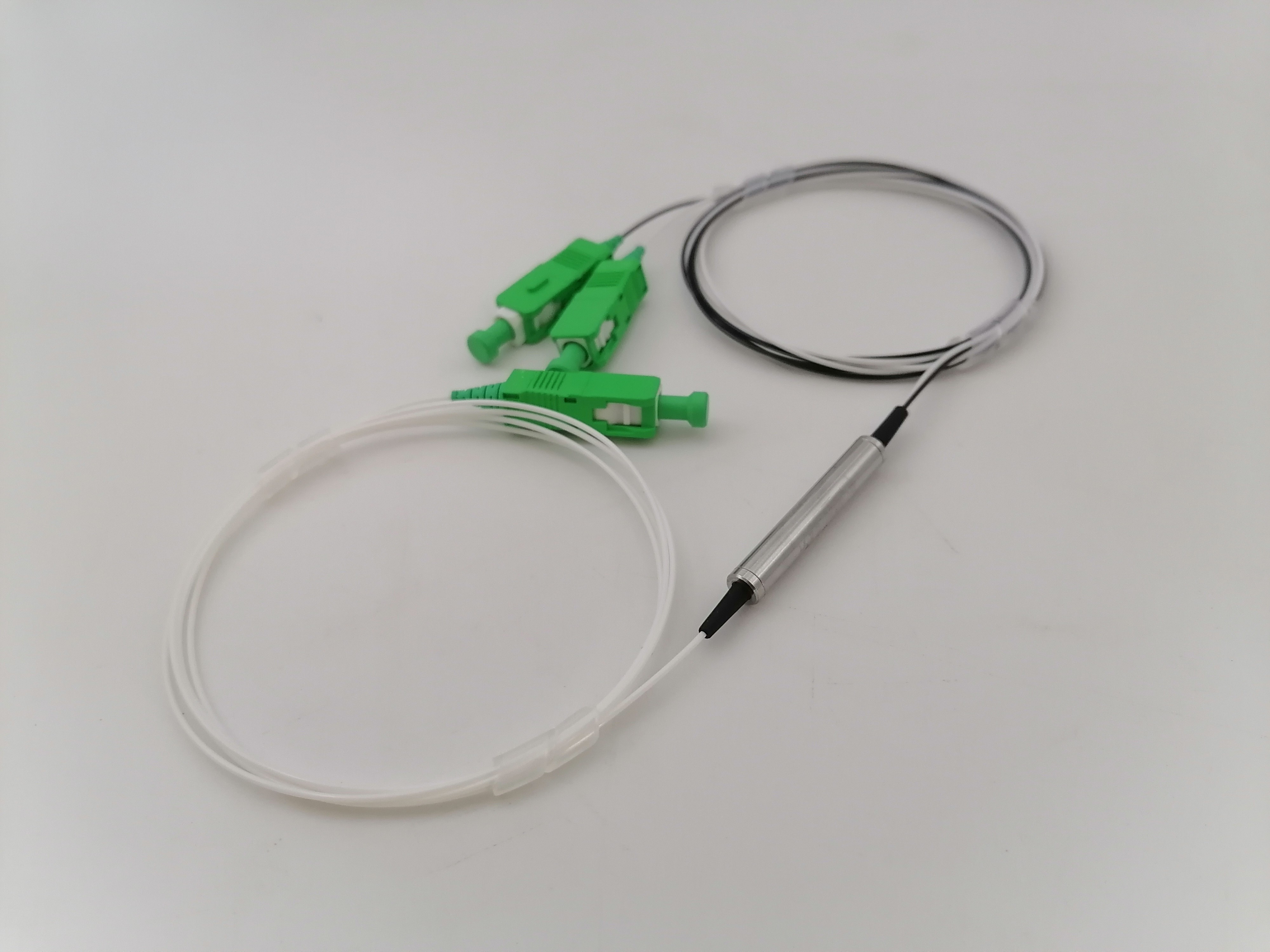

    1550nm Polarization Beam Combiner PBC PBS PM SMF Fiber Aligned To Slow Axis1550nm Polarization Beam Combiner PBC PBS PM SMF Fiber Aligned To Slow Axis
