Fiber optic closures are used throughout the network, including the
fiber trunk, feeder, distribution, and last mile segments. Our
Fiber Optic Closures combine proven fiber management hardware with
a highly reliable sealing system ,with excellent performance in
reliability, installation and flexibility.
APPLICATION
Suitable for ribbon and non-ribbon fibers Aerial, duct, direct
burial, and well Trunk lines Access networks FTTX, access networks
and broadband
FEATURES
Easily accessible for maintenance, changes, and expansion Protected
against water ingress and harsh conditions Suitable for a variety
of applications and environments including aerial, pedestal,
buried, or underground Compatible with existing cable types
Sealing Performance
Pressurized up to 100Kpa±5Kpa into the sealed FOSC,then put the
FOSC into the water 15minutes.There are no air bubbles.Or there is
no change of air pressure within 24 hours.
Re-entry performance
Re-entry the FOSC 3 times as normal working condition,and
pressurized up to 100Kpa±5Kpa into the sealed FOSC,then put the
FOSC into the water 15minutes.There are no air bubbles.Or there is
no change of air pressure within 24 hours.
Mechanical Character
1.Tensile Test: The axial tensile strength should be not less than
800N,and there is not any crack.
2.Squeezing test: The FOSC can bear 2000N/m2 ,the lasting time is 1
minute.There is not any crack.
3.Impact test The FOSC can bear 16N.M impact 3 times,there is not
any crack.
4.Bending test: The link part of cables and FOSC can bear 150N
bending strength.The bending angle is ±450 ,repeat 10 times,there
is not any crack.
5.Torsion Test: The FOSC can bear 50N.m torsion.The torsion angle
is ±90°,repear 10 times,there is not any crack.
Item | FOSC-001 | FOSC-002 | FOSC-003 | FOSC-004 |
Size(H*W*D)mm | 460*20*110 | 415*200*105 | 300*200*93 | 386*250*120 |
Cable port | 4 | 8 | 2 | 6 |
Max splice capacity | 120 | 144 | 72 | 192 |
Weight (KG) | 2.6 | 3.5 | 1.45 | 3.3 |
Type | Horizontal |

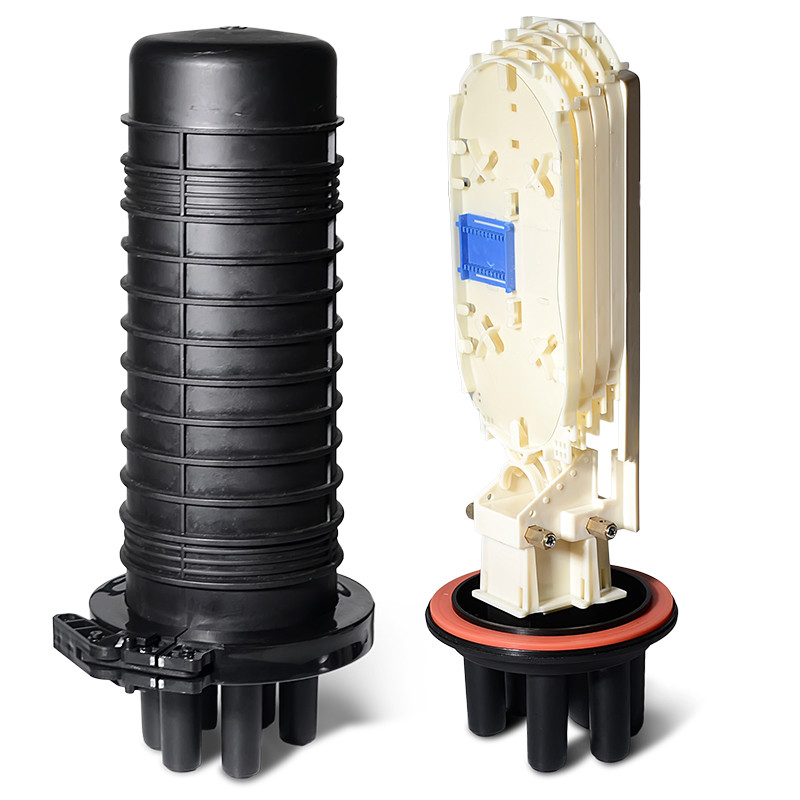

Item | FOSC-005 | FOSC-006 | FOSC-007 | FOSC-008 | FOSC-009 | FOSC-010 |
Size(H*W*D)mm | 438*205 | 330*85 | 435*220 | 430*130 | 600*135 | 600*250 |
Cable port | 4 | 3 | 3 | 5 | 5 | 5 |
Max splice capacity | 288 | 36 | 240 | 96 | 96 | 576 |
Weight (KG) | 2.8 | 1 | 3.1 | 3.5 | 3.6 | 5.5 |
Material | ABS ,PC or PP |
Duration | 25 years |
Type | Vertical (Dome) |
