    R1310 R1610nm LC UPC FWDM Filter 1530-1565nm With 5% Tap Hybrid

    Ask Lasest Price
    Brand Name : UNIFIBER-OEM
    Model Number : C Band FWDM Filter With 5% Tap Splitter
    Certification : ROHS
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 1000pcs/day
    Delivery Time : 3~5 business days
    • Product Details
    • Company Profile

    R1310 R1610nm LC UPC FWDM Filter 1530-1565nm With 5% Tap Hybrid

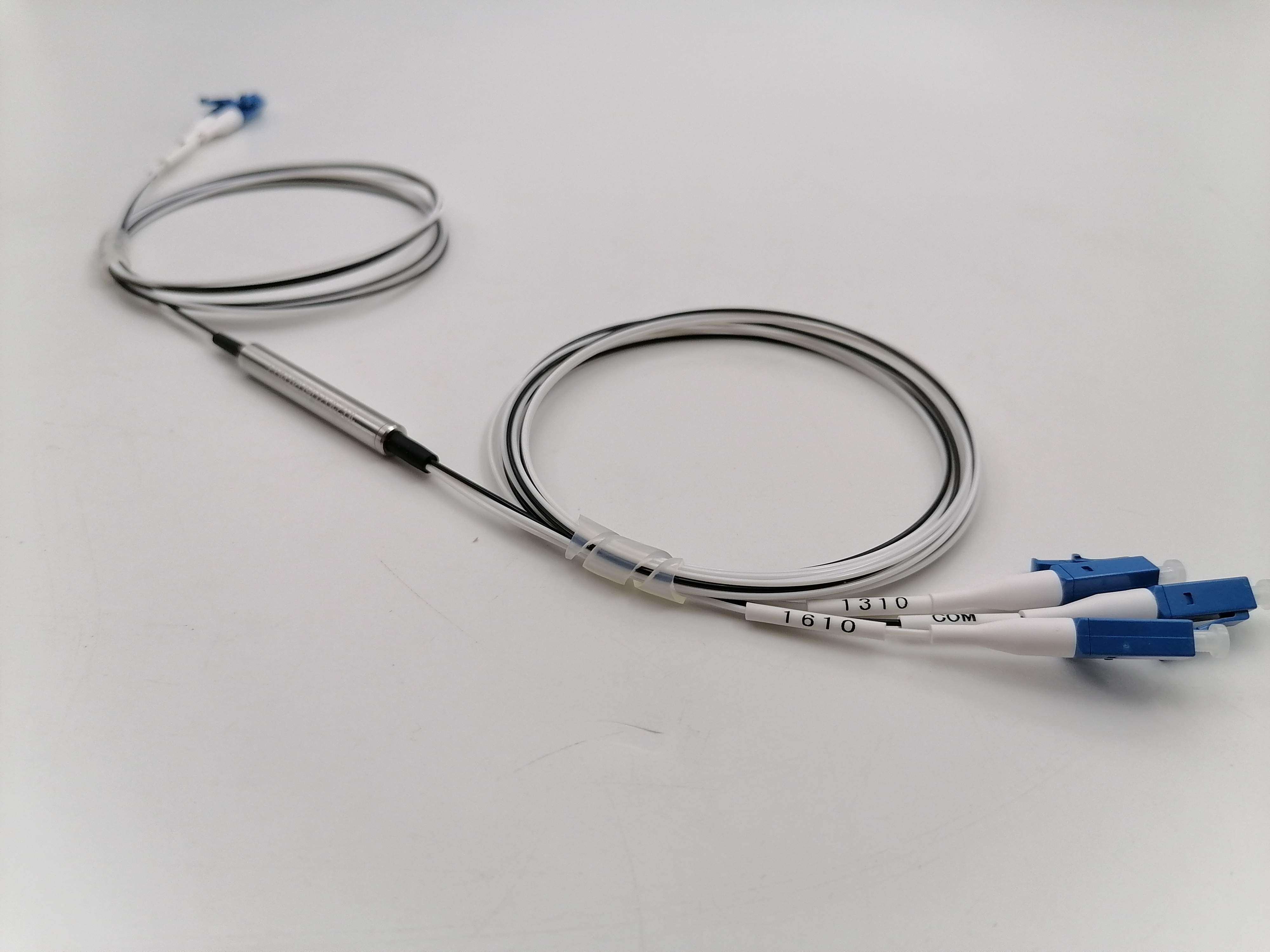

    T1550(1530-1565nm) R1310+R1610+Tap2% or 5%,5.5x38mm,900um,1m, LC/UPC utilizes thin film coating technology and proprietary design of non-flux metal bonding micro optics packaging. It provides low insertion loss, high channel isolation, low temperature sensitivity and epoxy free optical path.

    Number ring: Com,1310,1610,1550,2%Tap or 5% Tap


    ParametersSpecificationsUnit
    Pass Band1530~1565nm
    Reflection Band1260~1360,1580~1620nm
    Insertion Loss1310≤1.3dB
    1610≤1.3dB
    1550+98%1550+95%≤1.9≤2.0dB
    2%5%≤19.25≤14.8dB
    IsolationPass Channel≥30dB
    Reflection Channel≥15dB
    Directivity≥50dB
    Return Loss≥45dB
    Polarization Dependent Loss≤0.2dB
    Polarization Mode Dispersion≤0.2ps
    Fiber Length1.0±0.03m
    Fiber TypeSMF-28e with 900um Loose Tube/
    ConnectorLC/UPC/
    Operating Temperature-10 ~ +70
    Storage Temperature-40 ~+ 85
    Package sizeΦ5.5*38/


    Quality R1310 R1610nm LC UPC FWDM Filter 1530-1565nm With 5% Tap Hybrid for sale
