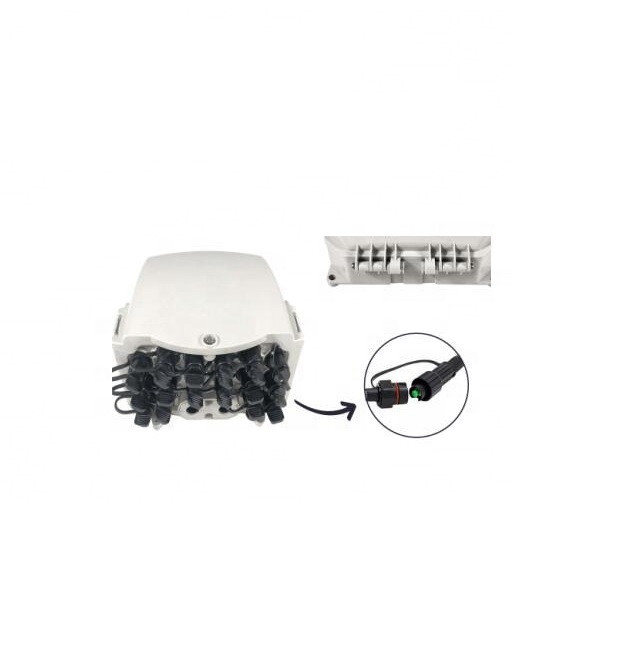

FTTH 16 Port Cajas NAP Terminal Box can connect the drop cable with feeder cable as the termination point in the Fttx network, which is cable to meet at least 16 users requirements. It can help splicing, splitting, storage and management with suitable space.

Features:

The body of NAP 16 Port is made of high-quality engineering plastic with good strength;
With a safe special-shaped lock, the box can be opened easily and has good waterproof performance, suitable for indoor and outdoor natural environments
With a water-proof adapter, the box can be operated more conveniently
With the double-page design, the box can be installed and maintained easily, the fusion and termination are completely separated
The drop leaf can be installed 2 pcs of 1*8 tube splitter

Installation:
Wall or Pole mounted installation

1 set of the pole ring to the telecom pole
Drill 3 holes into the wall based on the installation size, place the expansion bolt Φ7.5*40, place the box to match up the holes and use the bolt to fasten.

Output Port Suitable for HUAWEI Type Waterproof Connector,
(Model-1:Without PLC,4PCS SC/APC Adapter),
(Model-2:Without PLC, 8PCS SC/APC Adapter),
(Model-3:Without PLC,16PCS SC/APC Adapter),
(Model-4: 1PCS 1x4 PLC Splitter-SC/APC,4PCS SC/APC Adapter),
(Model-5: 2PCS 1x4 PLC Splitter-SC/APC,8PCS SC/APC Adapter),
(Model-6: 1PCS 1x8 PLC Splitter-SC/APC,8PCS SC/APC Adapter),
(Model-7: 2PCS 1x8 PLC Splitter-SC/APC,16PCS SC/APC Adapter),
(Model-8: 1PCS 1x16 PLC Splitter-SC/APC,16PCS SC/APC Adapter).

Specification:
