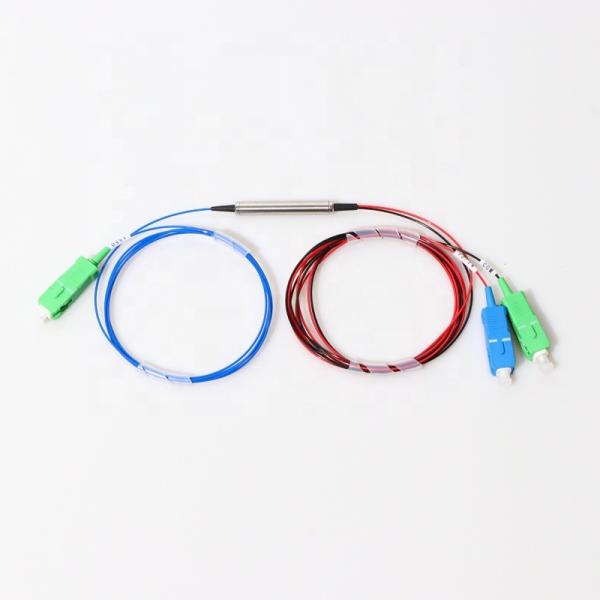

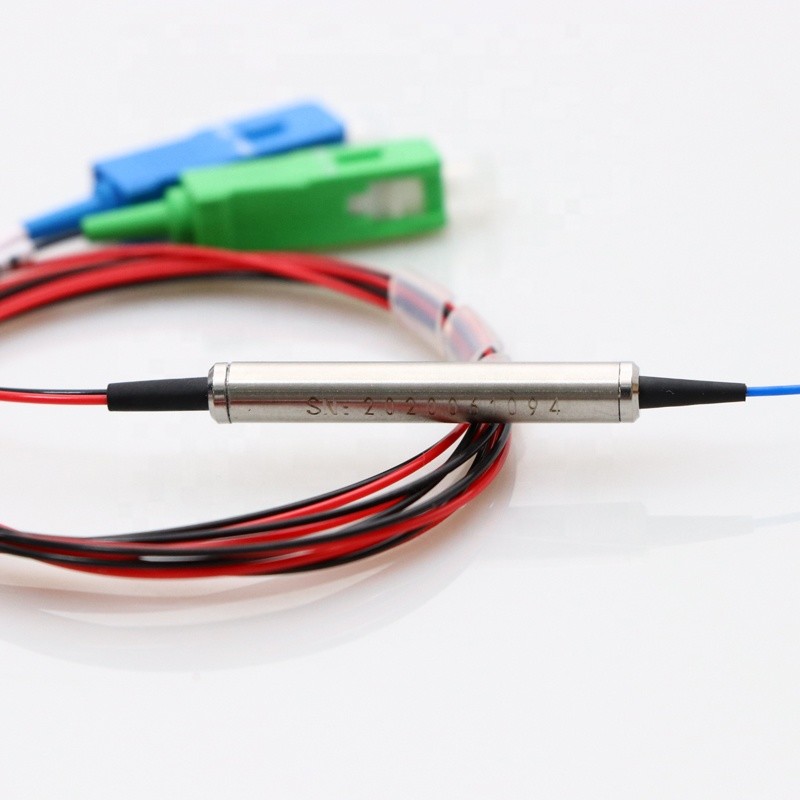

    1550nm Steel Tube SC APC CWDM Module FTTH 3 Ports FWDM

    Ask Lasest Price
    Brand Name : UNIFIBER
    Model Number : 3 Ports FWDM T1310nm/ R1490nm&1550nm
    Certification : ROHS
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 1000pcs/day
    Delivery Time : 3~5 business days
    • Product Details
    • Company Profile

    1550nm Steel Tube SC APC CWDM Module FTTH 3 Ports FWDM

    The 1310/1550nm Filter Wavelength Division Multiplexer is based on environmentally stable thin-film filter technology. The devices combine or separate light at different wavelength in a wide wavelength range. They offer very low insertion loss, low polarization dependence, high isolation and excellent environmental stability. High power handling capability can be achieved through unique pigtail processing and high quality AR coating. These components have been extensively used in EDFAs, Raman amplifiers, WDM networks and fiber optical instruments.


    Features:
    Low insertion loss
    Low PDL
    High channel isolation
    Excellent environmental reliability


    Application:
    WDM system
    CATV


    Specification

    Parameter
    Unit
    Values
    Transmission Wavelength Range
    nm
    1530~1600 (or 1270~1350)
    Reflect Wavelength Range
    nm
    1270~1350 (or 1530~1600)
    Max. Insertion Loss
    Transmission
    dB
    0.6
    Reflect
    dB
    0.4
    Min. Isolation
    Transmission
    dB
    30
    Reflect
    dB
    12
    Max. PDL
    dB
    0.1
    Min. Channel Flatness
    dB
    0.3
    Min. Return Loss
    dB
    50
    Max. Power Handling(CW)
    W
    0.3, 0.7, 1, 2, 3
    Max. Tensile Load(N)
    N
    ≤5
    Fiber Type
    -
    SMF-28e
    Operating Temperature
    -5 to +70
    Storage Temperature
    -40 to +85
    Package Dimensions
    mm
    Ø5.5 x L35

    1550nm Steel Tube SC APC CWDM Module FTTH 3 Ports FWDM
