    Laser Protection LC Internal Shutter Quad Adapter OM3 OM4 PC

    Ask Lasest Price
    Brand Name : UNIFIBER-OEM
    Model Number : LC internal Shutter Quad Adapter
    Certification : ROHS
    Price : Negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 1000pcs/day
    Delivery Time : 3~5 business days
    • Product Details
    • Company Profile

    Laser Protection LC Internal Shutter Quad Adapter OM3 OM4 PC

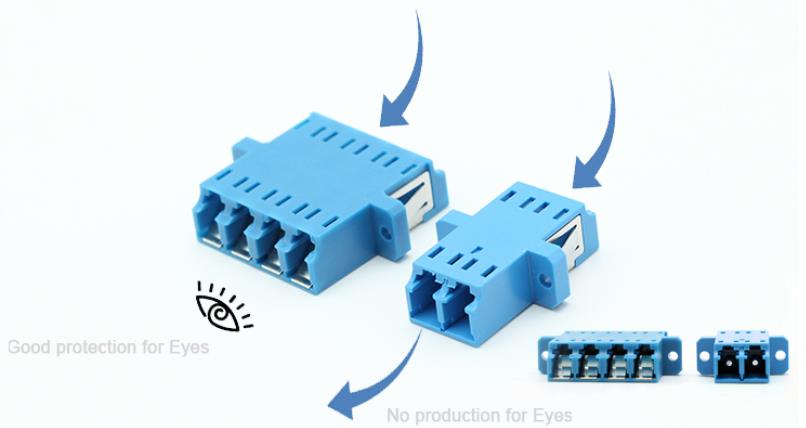

    LC Internal Shutter Quad Adapter s a one-piece design adapter. The shutter is 100% automatic and requires no physical handling of the shutter door. You can actuate this integrated, retractable shutter inside the adapter body by inserting the LC connector into the adapter. The shutter automatically opens as you insert the LC connector, and closes as you extract it. Due to the special design of the shutter, it will not touch the ferrule end face when you insert a connector, thus preventing end face damage. The internal shutter prevents eye exposure to lasers and provides protection from dust and other contaminants.With increasingly high-powered active devices being used in today’s networking and telecommunication platforms, Eye safety and connector cleanliness are an absolute necessity. UNIFIBER’s LC adapter with Internal shutter has been designed to meet this growing need.


    Features
    TIA/EIA-604 FOCIS-10 compatible; exceeds TIA/EIA-568-B.3 requirements
    Complies with IEC 61754-4, Flammability UL94 V-0 standard
    Available in Flanged and Flangeless options
    Precision connection with sleeve
    Low insertion loss, High Return loss
    Good interchangeability and reliability
    Meet IEC and ROHS standards
    High precision of mechanical dimensions Accuracy


    Application
    Patch panels, ODF and other optical connections.
    Optical networks demarcation and monitoring point


    Material

    Parts nameMaterialColor
    Housing bodyPCBlue, Green Customized
    SleeveHigh precision Ceramic sleeveWhite
    Inside hookPCBlue, Green Customized
    Metal PlateBronze bronze-
    Inner shutterSUS304-
    Dust CoverPVCBlack

    Specifications

    Test item(SM-9/125) UPC(SM-9/125) APCMM PC
    Insertion Loss≤0.2dB(Standard Grade); ≤0.1dB(Premium Grade);
    Return Loss≥50 dB≥60 dB≥35 dB
    Durability (1000 Mating)0.1dB Max.
    Withdrawal force(g/f)2.0N ~ 5.9N (200gf ~ 600gf)
    Storage Temp(℃)-40~+85

    Environment and Mechanical

    PropertiesTest conditionConformanceTest result
    Vibration10-55Hz, 1.5mm, 60minIEC61300-2-1≤0.2dB
    Mating Durability1000 Mating, clean every 25 mating.IEC61300-2-2≤0.2dB
    Impact1.5m, 8 dropsIEC61300-2-6≤0.2dB
    Strength of Coupling Mechanism40N, 10Min, L=22-28cmIEC61300-2-12≤0.2dB
    Temperature Cycling40ºC to +75ºC, 40 cyclesIEC61300-2-22≤0.2dB
    Temperature humidity cycling40ºC, 95%, 96HrIEC61300-2-21≤0.2dB
    Operating Temperature-40ºC to +85ºC≤0.2dB
    Storage Temperature-40ºC to +85ºC

    ≤0.2dB


    Products details

    Reduced Flange typeDrawing
    Laser Protection LC Internal Shutter Quad Adapter OM3 OM4 PC

    Laser Protection LC Internal Shutter Quad Adapter OM3 OM4 PC
