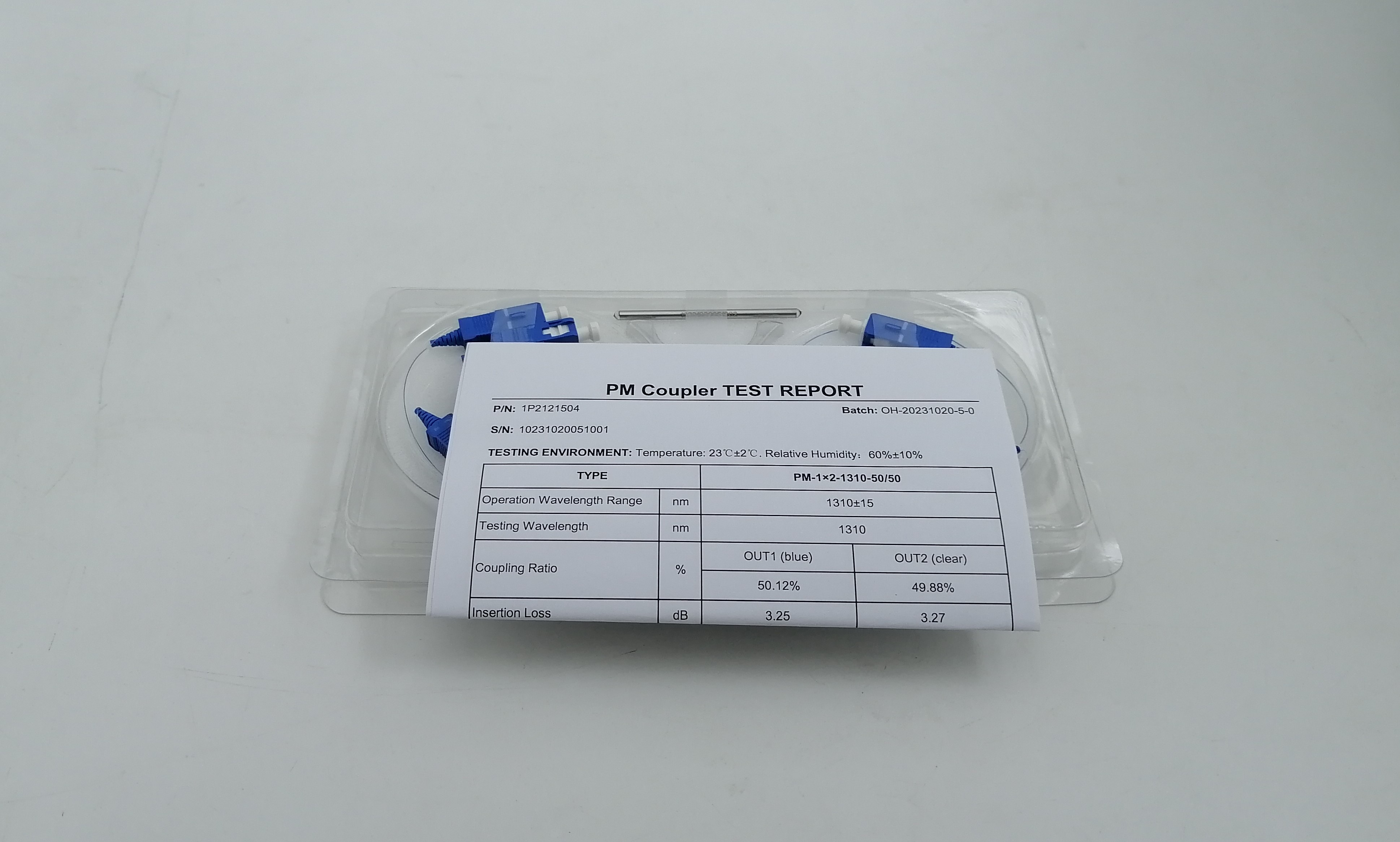

    1310nm 1550nm 1x2 PM Fiber Couplers 50/50

    Ask Lasest Price
    Brand Name : Unifiber or OEM
    Model Number : 1x2 PM Fiber Couplers
    Certification : ROHS
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 1000
    Delivery Time : 5~8days
    • Product Details
    • Company Profile

    1310nm 1550nm 1x2 PM Fiber Couplers 50/50

    Features
     Low Insertion Loss
     High polarization extinction ratio
     Small size
     High stability and reliability
    Applications
     Optical gyro
     Optical amplifier
     Optical sensors
     Optical Networks

    Performance

    ParameterSpecification
    Channel Wavelength (nm)1310, 1550
    Channel Spacing (nm)±15
    Insertion Loss(dB)50/50≤3.8
    30/70≤6.1/2.3
    20/80≤8.1/1.7
    10/90≤11.5/1.2
    5/95≤14.5/0.9
    3/97≤17.1/0.6
    2/98≤18.5/0.5
    1/99≤22.0/0.45
    ER(dB)For CR>10% Port>20
    For 10%≥CR>1%Port>18
    For CR≤1% Port
    Directivity dB)>50
    Return Loss(dB)>50
    Maximum Power Handling (Mw)500
    Opterating Temperature (℃)-5~+75
    Storage Temperature (℃)-40~+85
    Fiber typePanda PM fiber
    Dimensions Φ×L(mm)3×54 or customized

    1).The specifications are without connectors. For devices with connectors, IL should be 0.3 dB higher ,and ER should be 2dB lower.

    2). For device adding connectors, key aligns to slow axis if no special requirement.


    Ordering Information

    XXXXXXXXX
    ModeGradeWavelengthPortFiber TypePackageRatioIn/Out Connector
    1=Polarization-Maintaining Coupler

    P

    A

    1=1550

    2=1310

    1=1x2

    2=2x2


    1=Bare fiber

    2=900um

    Loose tube

    3=2mm Cable

    4=3mm Cable

    1=3x54

    2=3x60

    3=90x20x10

    4=100x80x10


    01=1/99

    02=2/98

    03=3/97

    05=5/95

    10=10/90

    20=20/80

    30=30/70

    40=40/60

    50=50/50

    0=None

    1=FC/APC

    2=FC/PC

    3=SC/APC

    4=SC/PC

    5=ST

    6=LC

    S=Specify
