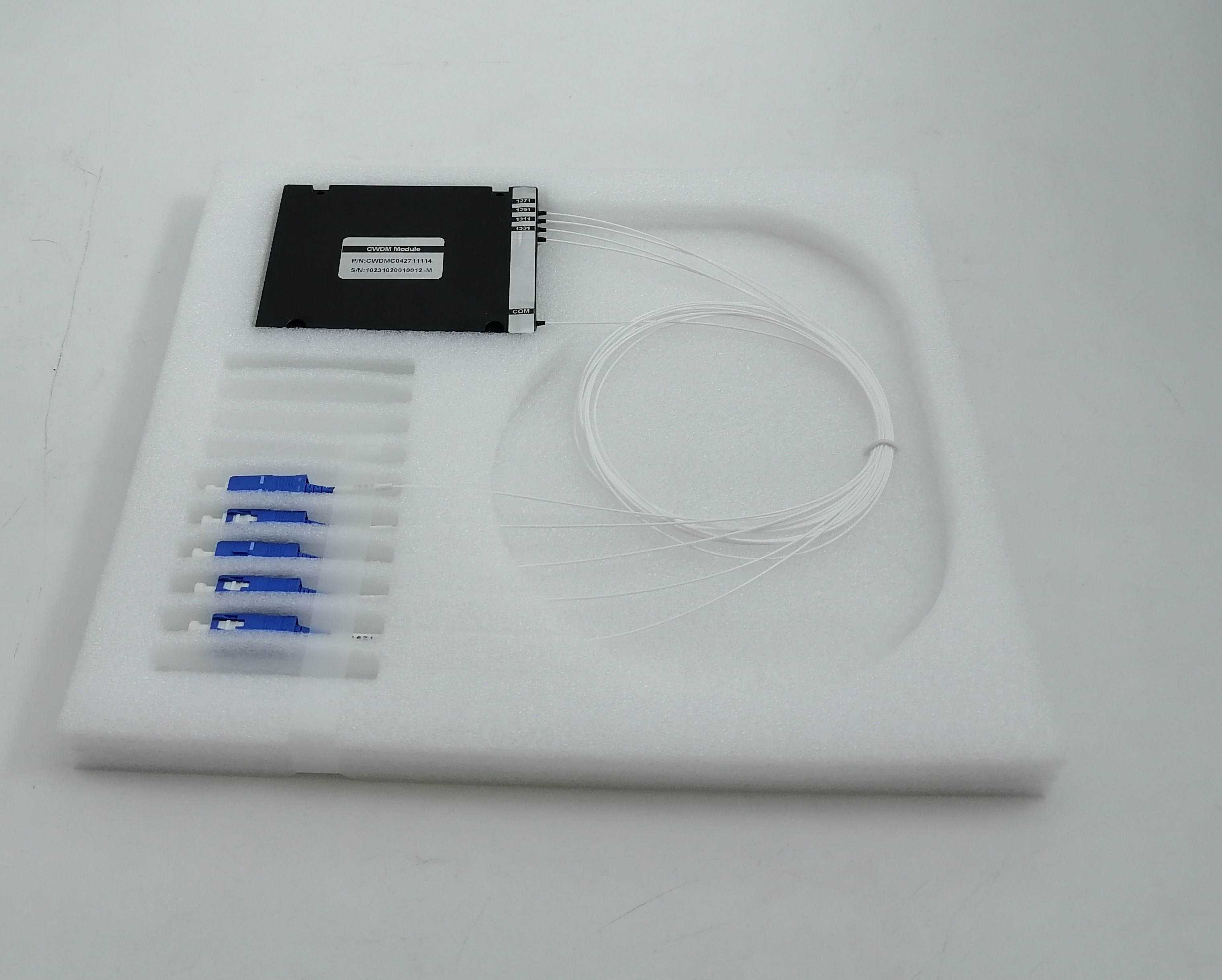

4CH PM CWDM Mux/Demux Module 1270/1290/1310/1330nm

Features

 Low Insertion Loss

 High extinction ratio

 High return loss

 High stability and reliability

Applications

 WDM network

 Telecommunication

 Fiber optical amplifier

Performance Specifications:

Parameters		4Channel	Unit
Channel Wavelength		1270-1610(18 CWDM wavelengths optional)	nm
CWDM Channel Spacing		20	nm
Channel Passband (@0.5dB bandwith)		+/-6.5	nm
Extinction Ratio(@23℃)(dB)		≥20	dB
Insertion Loss(@23℃)(dB)		≤1.8	dB
Insertion Loss(Typ.) (@23℃)(dB)		1.2	dB
Channel Ripple		<0.5	dB
Isolation	Adjacent	≥30	dB
	Non-Adjacent	≥40	dB
Directivity		≥50	dB
Return Loss		≥45	dB
Maximum Power Handing		500	mW
Operating Temperature		-10~+75	℃
Storage Temperature		-40~+85	℃
Humidity		0 to 95%RH not condensed
Fiber Type		PM 1550
Working Axis		Slow axis working,Fast axis block
Package Size		100x80x10	mm

*Notes: All insertion loss values include loss values for connector

Ordering Information

CWDM

Channel Spacing

Number of Channels

1^st Channel

Package

Axis Alignment

Fiber Diameter

Fiber Length

Connector

C=20nm

04=4 Channels

08=8 Channels

16=16 Channels

18=18 Channels
N=N Channels

27=1270nm

…..

47=1470nm

49=1490nm

…….

61=1610nm

1=ABS Box Module

2=Rackmount

3=LGX box

4=Insert Box

S=Specify

1=Slow axis working

2=Fast axis working

0=250um

1=900um

2=2.0mm

3=3.0mm

S=Specify

0=0.5m

1=1m

2=2m

3=3m

S=Specify

0=None

1=FC/APC

2=FC/UPC

3=SC/APC

4=SC/UPC

5=LC/APC

6=LC/UPC

7=ST

S=Specify
